STP2WSP File Converter, Part 1: The Anatomy of A .STP
February 25, 2010
Recently, together with my colleague Martin Schmidt, I gave a session on MOSS 2007 to SharePoint 2010 migration. Among other things I mentioned that the site template .STP files are no longer supported in SharePoint 2010. STP files are still supported for list templates, though.
From my professional experience I know that there are many people who have a lot of site templates in .STP format and they don’t want to lose their work. Microsoft suggests that the right way is to create a site with each template, upgrade to SP2010 and then save as WSP template in the new version. It’s an overkill, if you ask me.
My goal is to create a converter written in .NET that would crack open an STP site template and write a shiny new WSP file with the same structure. You will follow my journey in the following days.
An .STP Site Template

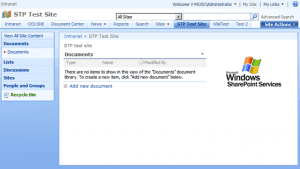

Let’s create a normal site, with blank site template. I will add a document library and a webpart to expose the library on the default site page.
![image image](/static/b5e9ae53ce9baad4628cb3d7206f3715/5a46d/image_thumb-5B7-5D-300x169.png)

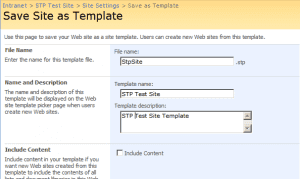

Now, save it as a STP file by going to Site Settings / Save Site as Template option.
![image image](/static/46893a091aef81b627a54fe11e771afb/5a46d/image_thumb-5B6-5D-300x179.png)
The template is now safe in the Site Template Gallery in the root of the site collection.
![image image](/static/05b811891cac48f917a74ef6dc499c04/5a46d/image_thumb-5B5-5D-300x75.png)
Prying the Lid Off
Let’s download the STP file and extract its contents with the Microsoft Cabinet SDK Tools.
![image image](/static/32ee2739d8b974f4815c117c3e88aa2f/5a46d/image_thumb-5B4-5D-300x68.png)

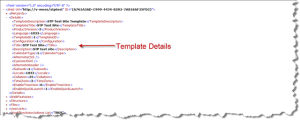

In this case it’s only a single manifest.xml file. A quick inspection reveals that it has the site template header and a site definition metadata.
![image image](/static/1c9f4acb1bd76f3673e8428ad88a2271/5a46d/image_thumb-5B10-5D-300x120.png)

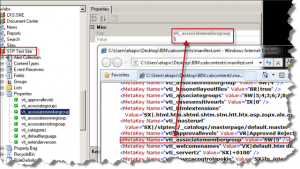

Opening SharePoint Manager 2007 to inspect the source web raw properties, we see that there is a clear mapping between the <MetaKey> tags and the site property bag:
![image image](/static/99725a4461acbd4e3eb0a16bde3e9eb1/5a46d/image_thumb-5B13-5D-300x169.png)
Furthermore, the manifest.xml file keeps reference to the original site definition (in this case, “Blank site”) from which the original site is created.
<table border="0" cellspacing="0" cellpadding="2" width="550"><tbody><tr><td valign="top" width="258"><strong>STP Manifest.xml</strong></td><td valign="top" width="290"><strong>12TEMPLATE1033XMLWEBTEMP.XML</strong></td></tr><tr><td valign="top" width="254"><a href="images/image_thumb-5B15-5D.png"><img style="border-bottom: 0px; border-left: 0px; display: inline; border-top: 0px; border-right: 0px" title="image" border="0" alt="image" src="images/image_thumb-5B15-5D-300x102.png" width="240" height="81"></a></td><td valign="top" width="290"><a href="images/image_thumb-5B19-5D.png"><img style="border-bottom: 0px; border-left: 0px; display: inline; border-top: 0px; border-right: 0px" title="image" border="0" alt="image" src="images/image_thumb-5B19-5D-300x95.png" width="240" height="76"></a></td></tr><tr><td valign="top" width="254">Note the <strong>TemplateID</strong> and <strong>Configuration</strong> attributes</td><td valign="top" width="290">Note the <strong>ID</strong> attribute of the <strong>Template</strong> tag and the <strong>ID</strong> attribute of the <strong>Configuration</strong></td></tr></tbody></table>
I’ll keep investigating. The rest of the story, in Part 2, soon.
