Hiding List View Group Headers
June 10, 2008
It’s really annoying that SharePoint displays those pesky column names followed by a colon when you group by a column. In this example I use the the columns “Categoria” and “Titulo” to group a bunch of pages.
![image image](/static/5cfb534b3412c8951b1b264af22e5aa1/5a46d/image_thumb-5B2-5D-300x169.png)
In addition, the gray header row is ugly, too.
We can hide it with some Content Editor Web Part (CEWP) and JavaScript magic.

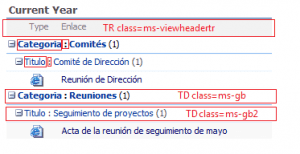

The offending elements can be identified:
![image image](/static/7941d3458af90f2b60ce8a18f2f66443/5a46d/image_thumb-5B11-5D1-300x154.png)
We have to hide the following elements:
- a TR element with class name ms-viewheadertr (the header row)
- the fourth and the fifth child of a TD element with class names ms-gb (the column name of the first group by and a colon)
- the fourth and the fifth child of a TD element with class names ms-gb2 (the column name of the second group by and a colon)
I use the excellent getElementsByClassName function developed by Robert Nyman in order to get those elements by class name.
This is the code to be pasted in a CEWP at the same page where you have the “ugly” list view. Please note that the text node which contains the colon must be removed instead of being hidden.
> <script type="text/javascript" language="javascript">
> \_spBodyOnLoadFunctionNames.push("HideHeaders");
>
> function HideHeaders()
> {
> var elements = getElementsByClassName(document, "td", "**ms-gb**");
> var elem;
> for(var i=0;i<elements.length;i++)
> {
> elem = elements\[i\];
> elem.childNodes\[3\].style.display = "none";
> elem.removeChild(elem.childNodes\[4\]);
> }
>
> elements = getElementsByClassName(document, "td", "**ms-gb2**");
>
> for(var i=0;i<elements.length;i++)
> {
> elem = elements\[i\];
> elem.childNodes\[3\].style.display = "none";
> elem.removeChild(elem.childNodes\[4\]);
> }
>
> elements = getElementsByClassName(document, "tr", "**ms-viewheadertr**");
>
> for(var i=0;i<elements.length;i++)
> {
> elem = elements\[i\];
> elem.style.display = "none";
> }
> }
>
> /\*
> Written by Jonathan Snook, [http://www.snook.ca/jonathan](http://www.snook.ca/jonathan)
> Add-ons by Robert Nyman, [http://www.robertnyman.com](http://www.robertnyman.com/)
> \*/
> function getElementsByClassName(oElm, strTagName, strClassName){
> var arrElements = (strTagName == "\*" && oElm.all)? oElm.all : oElm.getElementsByTagName(strTagName);
> var arrReturnElements = new Array();
> strClassName = strClassName.replace(/-/g, "\\-");
> var oRegExp = new RegExp("(^|\\s)" + strClassName + "(\\s|$)");
> var oElement;
> for(var i=0; i<arrElements.length; i++){
> oElement = arrElements\[i\];
> if(oRegExp.test(oElement.className)){
> arrReturnElements.push(oElement);
> }
> }
> return (arrReturnElements)
> }
> </script>

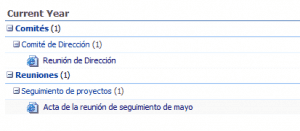

This is the result of this code:
![image image](/static/7944d89a3ee86f503fe0a4be0b4dbad3/5a46d/image_thumb-5B8-5D-300x131.png)
Much better, isn’t it?
